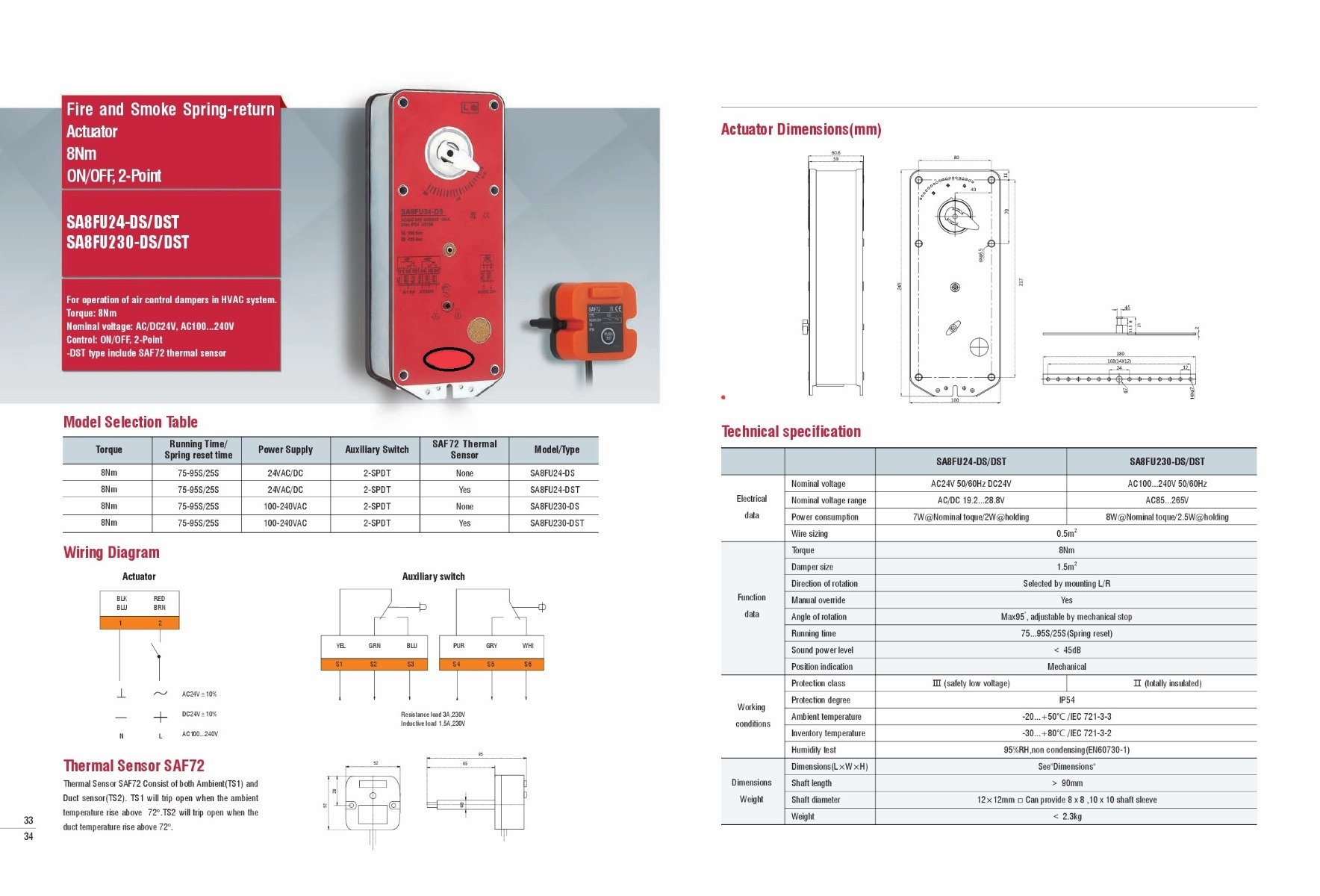

SA8FU230-DST Задвижка за противопожарни и димни клапи
263,00 лв.
SKU
SA8FU230-DST ЦЕНА БЕЗ ДДС
|
Types |
SA8FU24-DS |
SA8FU24-DST |
SA8FU230-DS |
SA8FU230-DST |
|||
|
Torque |
8Nm |
||||||
|
Damper size |
1．5m2 |
||||||
|
Running time |
Running time 75-95s; spring reset time<25s |
||||||
|
Power supply |
AC24V 50/60Hz；DC24V |
|
|||||
|
Power consumption |
working 5W , stop 3W |
||||||
|
Wire sizing |
0.5mm2 |
||||||
|
Weight |
2.5Kg |
||||||
|
Control signal |
single line |
||||||
|
Direction of rotation |
to install on the other side |
||||||
|
Angle of rotation |
max 95º |
||||||
|
Position indication |
machine instruction |
||||||
|
Rated value of auxiliary switches |
1mA…3(0.5)A, AC220V |
||||||
|
Life-time |
60,000 times rotation |
||||||
|
Sound power level |
Max 45dB(A) when motor working,max62dB(A) while spring return |
||||||
|
Protection class |
Ⅲ |
|
|||||
|
Protection degree |
IP54 |
||||||
|
Ambient temperature |
-20~+50℃ |
||||||
|
Ambient humidity |
5~95%RH |
||||||
|
Inventory temperature |
-40~+70℃ |
||||||
|
Criterion |
CE certification |
||||||
|
72℃Heat detector |
without |
with |
without |
||||
